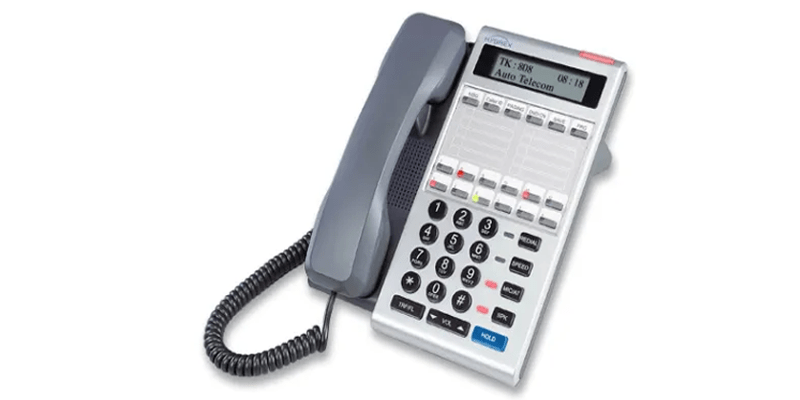

The DK6-31 model bears all the design and functional aspects of the DK6 model in a version suited to situations where there are fewer DSS keys required. The retention of the large character two line LCD display on this model preserves the ability for the user to view relevant status and system messages such as Caller ID etc. The DSS keys are lit by bi-colour LEDs; handsfree operation and a headset port are available; message lamp and adjustability of volumes and ringtone are integrated; in fact all the normal features of the DK6 series are embodied in this model. As with other TransTel digital series single pair wiring only is required.

Features :

1. The DK6-31 is the mid-range model.
2. Body colour is charcoal; faceplate finish is silver.
3. 18 programmable DSS keys all lit by bi-colour LEDs
4. Handsfree capable.
5. Headset port.
6. Adjustable stand – two positions.
7. Wall mountable
8. Melody ring tones on GDS
9. Modulated dial tone on GDS – to match the Australian network.
10. Designed for the G1E, and GDS systems, the DK6 also works on the G2 but with reduced functionality.

The DSS console companion for a DK6 series handset in a reception/switch situation. Available in charcoal colour to match the DK6 series. The DK6-DSS console features 60 programmable system keys, lit by bi-colour LEDs, allowing a receptionist at-a-glance knowledge and control of an office telephone network. If control of a larger network is required up to 8 DK6-DSS consoles can be connected. Requires only single pair wiring to a DK port on the main equipment per DSS console deployed.

Features :

1. DK6-21 Handset
2. DK6-DSS Console unit

The DK7-21 keyphone is a new model recently released to complement the stable of TransTel digital keyphones. Compatible with all TransTel “G” series systems, the DK7-21 provides a full range of features on these systems for a very modest outlay. Features such as : a large character 2 line LCD display so you are kept informed of call and phone status; 10 bi-colour DSS LEDs that allow presentation of line/group status, co-worker extension status, other system function status etc – all according to system programming; large format dial keypad for easy use and all the function keys necessary for easy call handling; normal, and handsfree operation for voice; adjustable levels – preset and tone choice for ring, preset and dynamic for voice; and more. With its two position back stand the DK7 can be adjusted to preference, and sits well on the desk allowing for full visibility and easy use.

Features :

1. Time (system real time clock).
2. Dialed Telephone Number.
3. Last Number Redial.
4. Speed Dial Number.
5. Speed Dial Directory.
6. Voice Mail – Messages Waiting.
7. CO Line Names.
8. Status of Operation/Function.
9. Absent Messages.
10. Calling Party Number and Name.
11. Phone / System Setting Values.

Specifications :

1. Ring / Message Indication Lamp.
2. 10 Dual Color DSS Keys.
3. 14 Function Keys.
4. Speakerphone.
5. Handsfree Calling.
6. Adjustable Volume Level for Handset / Speaker / Ringer.
7. 8 Ringer Frequencies.
8. Adjustable Dual-Angle Back Stand.

Key System Features Available:

1. Answering Machine Emulation.
2. Automatic-Answer Intercom.
3. Auto Attendant with Overflow.
4. Busy Lamp Field.
5. Barge-in.
6. Call Forward –Busy/No Answer/All calls.
7. Call Transfer.
8. CLI on Both External and Internal.
9. Conference.
10. Do Not Disturb.
11. Music On Hold – Recordable.
12. Paging (All / Zone / Meet Me).
13. Pick Up Groups.
14. Programmable DSS keys.
15. Single Digit Dialing.
16. Trunk Queuing.
17. and many more …..

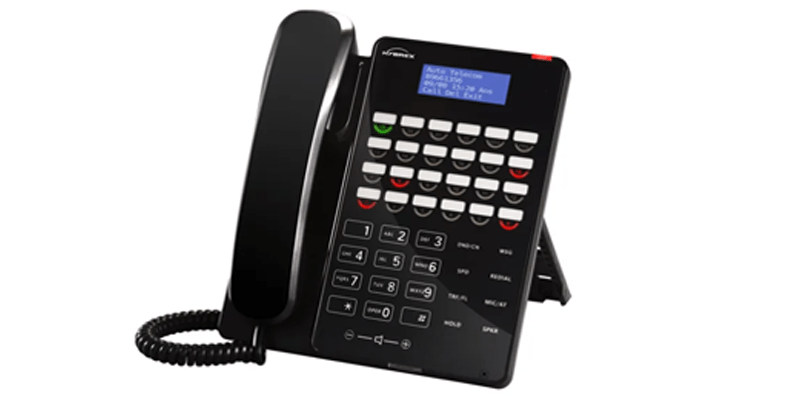

This new design phone has a very slim profile body resulting in a contemporary look and feel. Incorporating a removable stand the phone can be mounted in two positions on the desk – approx 60 or 45 degrees slope – or wall mounted without the need for any special kit. It has DSS keys with bi-colour LED – 22 of them – as expected for TransTel keyphone – giving access to the full range of functions inherent in TransTel systems according to their programming. The 21 model has a 4 line LCD display, in an attractive and easy to read reverse backlit blue colour, providing more than adequate call information. Along with the normal controls for volumes etc, the phone has Full Duplex Handsfree mode, and provides two options (ports) for headset connection. These are one for a standard wired headset, and one for Electronic Hookswitch (EHS) – in the industry standard DHSG format for seamless integration with compatible wireless headsets without the need for a lifter fitted to the phone. As with other TransTel DK phones the DK8 is connected to the main equipment via single pair wiring so deployment over existing wiring is painless.

Features :

1. The DK8-21 is the ‘executive’ model of the two available.
2. All “Touch” Keys, including hookswitch.
3. Four Line LCD display in reverse backlit Blue colour.
4. Body colour is satin textured black.
5. 22 programmable DSS keys all lit with bi-colour LED.
6. Full Duplex Handsfree.
7. Headset port 1 – std wired.
8. Headset port 2 – DHSG EHS for seamless integratio
n with wireless headset
9. Adjustable stand – two positions.
10. Wall mountable.
11. Ring and Message LED at top of phone body
12. Adjustable Ring Frequency (8) and Gradual Ring programmable.
13. Adjustable Volume level for Handset / Headset / Speaker / Ringer
14. Modulated dial tone on GDS – to match the Australian network.
15. Phone identified as DK6 to older systems so is legacy system compatible

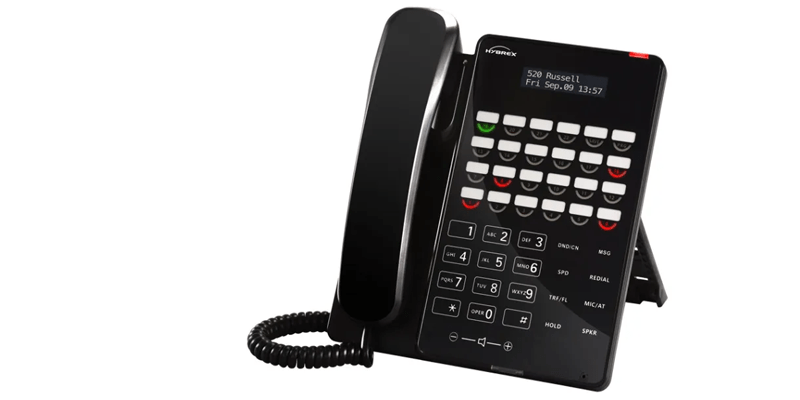

This new design phone has a very slim profile body resulting in a contemporary look and feel. Incorporating a removable stand the phone can be mounted in two positions on the desk – approx 60 or 45 degrees slope – or wall mounted without the need for any special kit. It has DSS keys with bi-colour LED – 22 of them – as expected for TransTel keyphone – giving access to the full range of functions inherent in TransTel systems according to their programming. The 31 model has a 2 line LCD display, in an attractive and easy to read reverse backlit in a black and white format, providing more than adequate call information. Along with the normal controls for volumes etc, the phone has Full Duplex Handsfree mode, and provides one standard wired headset port. As with other TransTel DK phones the DK8 is connected to the main equipment via single pair wiring so deployment over existing wiring is painless.

Features :

1. The DK8-31 is the ‘standard’ model of the two available.
2. All “Touch” Keys, including hookswitch.
3. Two Line LCD display in reverse backlit White on Black colour.
4. Body colour is satin textured black.
5. 22 programmable DSS keys all lit with bi-colour LED.
6. Full Duplex Handsfree.
7. Headset port 1 – std wired.
8. Adjustable stand – two positions.
9. Wall mountable.
10. Ring and Message LED at top of phone body
11. Adjustable Ring Frequency (8) and Gradual Ring programmable.
12. Adjustable Volume level for Handset / Headset / Speaker / Ringer
13. Modulated dial tone on GDS – to match the Australian network.
14. Phone identified as DK6 to older systems so is legacy system compatible

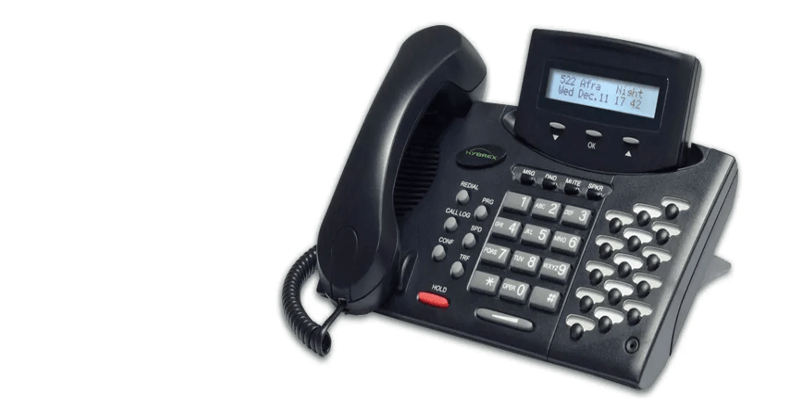

The DK9-15 model presents all the core design and functional aspects of the DK9 series for use in the larger number of situations where fewer DSS keys are required and the information provided by a two line display is ample for the user. The LCD display is backlit with mid character sizing for good visibility and with two lines of 32 characters each provides the relevent information needed for a phone : caller ID, dialed number, call status, system messages, voicemail/message waiting, clock, and more. The 15 DSS keys are lit with bi-colour LEDs and system programmable for usage as DSS / BLF or system feature keys. The dial pad is easy to use as are the complement of dedicated function keys, making the DK9-15 a convenient and economical keyphone. As with other Hybrex digital series phones single pair only wiring is required.

Specifications :

1. Multi-Line 32chr Backlit LCD Dsiplay.
2. 25 Dual Color DSS Keys.
3. 33 Function Keys.
4. Ring / Message Indication Lamp.
5. 8 Ringer Frequencies
6. 8 Polyphonic Ring Tones.
7. Adjustable Volume Level for Handset / Speaker / Ringer.
8. Handsfree Calling.
9. Headset Jack.
10. Speakerphone.
11. Tilt Angle Adjustable LCD Panel.

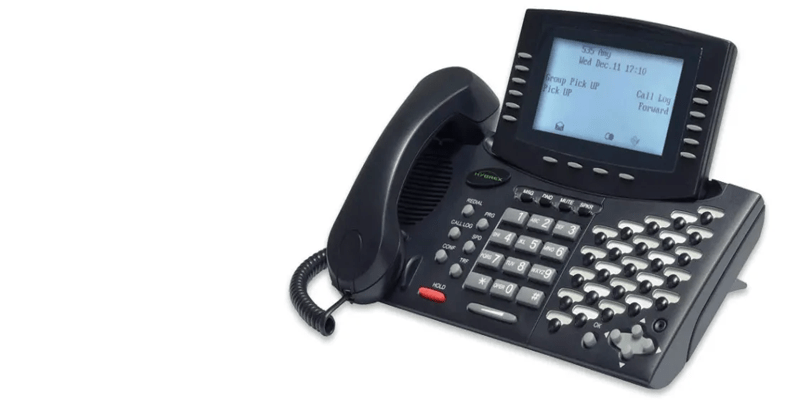

New generation TransTel executive model digital desk handset.
Featuring : 25 DSS keys with dual colour LEDs individually programmable for usage as DSS / BLF or system feature keys; sizeable 32 character wide multi-line backlit LCD display for good visibility of status and system messages, with bezel mounted soft keys for context relative operation choices; large easy to use dial pad plus a full complement of dedicated function keys for complete operational control. Providing quality digital audio and communications the DK9-25 is connected to the main equipment with single pair wiring so deployment over existing wiring is painless.

Multiline LCD Display shows :

1. Absent Messages.
2. Call Logs.
3. Calling Party Number and Name.
4. CO Line Names.
5. Dialed Telephone Number.
6. Last Number Redial.
7. Menu Keys.
8. Phone / System Setting Values.
9. Speed Dial Directory.
10. Speed Dial Number.
11. Status of Operation/Function.
12. Time.
13. Voice Mail Message Notification..

Compatibility :

1. Compatible with the newer TransTel GDS and G1E+M systems with MPUN processor.
2. Compatible with previous GDS and G1E+M systems with MPU processor, with possible operational differences.
3. Compatible with G1E+ systems but with limited Display functionality, and possible operational differences.
4. Update of system software may be required for compatibility assurance.
5. NOT compatible with older TransTel G1 and G2 systems.

Key System Features :

1. Answering Machine Emulation
2. Automatic-Answer Intercom
3. Auto Attendant with Overflow
4. Auto Redial
5. Busy Lamp Field
6. Barge-in
7. Call Forward –Busy/No Answer/All calls
8. Call Transfer
9. CLI on Both External and Internal
10. Conference
11. Music On Hold– Recordable
12. Paging Internal and Meet me
13. Pick Up Groups
14. Programmable DSS keys
15. Single Digit Dialing
16. Station Hunting
17. …and many more!

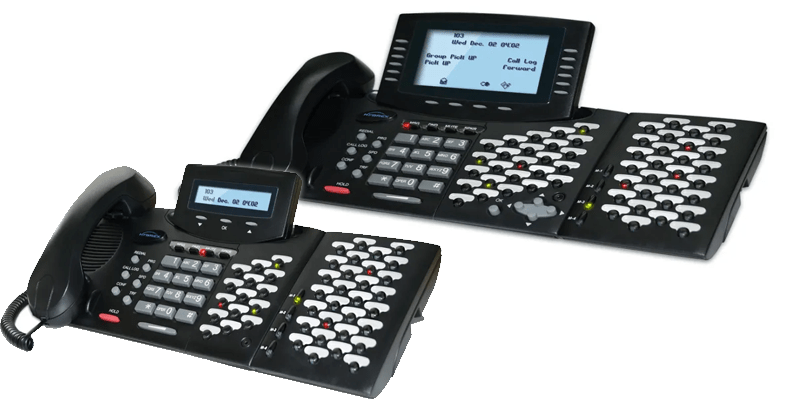

The DK9-DSS console is the companion for a DK9 series handset in a reception/switch situation. Also useable in other situations if required. This console is colour and form matched to the DK9 series handsets, and features 30 programmable DSS keys with bi-colour LEDs, allowing at a glance knowledge and control of an office telephone network. Keys are individually programmable, via system DSS keyplan, for station BLF / DSS or system function . Memory keys allow on-the-fly use of second set of key mappings from the assigned keyplan. The number of consoles with differing key-maps deployable is regulated by keyplans available, which is relative to the system in use: 1 keyplan on G1E plus, 8 keyplans on GDS160, 20 keyplans on GDS320, and so on upwards. The absolute number of consoles that can be deployed is only limited by system port availability. In addition to these keyplan notes, system compatibility of this console is as per notes in the DK9-15 section above. Console units can be free standing but are designed to be integrated with a DK9 handset using a sturdy bracket mount. Additional console units can be attached in the same fashion if required. Wiring requirements are a single pair to the system and a digital system port per console deployed. When partnered with a DK9 phone the first console connection can be made via the phone thereby minimising the number of cables required.

Features :

30 DSS keys with bi-colour LEDs. M keys allow mapping of second set of key assignments. Free standing or bracket mount to DK9 handset. DK9-25 Handset + DK9-DSS Console unit DK9-15 Handset + DK9-DSS Console unit
