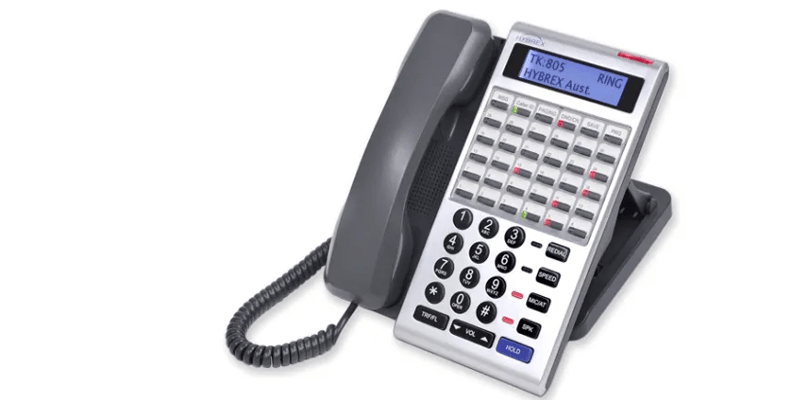

The IP38-61 is a dynamic and next generation SIP based VOIP telephone instrument specially designed for the TDS/G1E+M Series IP System.
By deploying the IP38-61, you gain the benefit of “unifying” all your remote operations into a single system. You may have a warehouse several miles away with the need for 5 telephones. Instead of installing a separate system there, with it’s own lines and voice mail system, you can leverage the technology advances of Transtel by implementing VoIP based IP38-61 telephones at the remote location.
The remote IP38-61 telephones operate seamlessly as directly connected devices offering one touch station to station dialing, voice mail boxes from main office system, ability to use local lines for outward calling purposes. These phones can be paged and dialed directly from the automated attendant located in the main system!
Travelers to remote locations can benefit from the use of the IP38-61. Just plug the phone into any internet connection located any where in the world and you have immediate office communications as if you were back at the home office! Call others in the office, answer calls or receive transferred calls. The audio quality is outstanding and customers will not be able to tell if you are in the office or traveling abroad. With the IP38-61, it’s business as usual, no matter where you are located.
If your company would like to offer extended customer service hours over different time zones, implementing the IP38-61 is the perfect solution. Simply set up your incoming lines to ring IP38-61 telephones after normal working hours in your main location. In this way you will be able to extend your hours of operation automatically.
TransTel’s IP38-61 telephone coupled with the TDS/G1E +M IP Platform saves money in both equipment and long distance costs. It allows organizations of all sizes the ability to “unify” operations by providing a single system to all employees over an IP based infrastructure.
Physical Features :
- Body colour is charcoal, with a silver finish on the faceplate.
- Large, Backlit LCD display, 2 Line x 16 Chr. Contrast adjustable.
- 36 system programmable DSS keys all lit with bi-colour LED.
- Standard dial pad plus 8 function keys (4 with LED indicator).
- Full handsfree operation available with high quality performance.
- Headset socket (2.5mm).
- Adjustable multipurpose stand – two desk positions, or wall mtg. position.
- User control over audio levels of speaker, earpiece, mic, and camp-on tone.
- User control over ring level, style, and frequency.
- Message/Voice Mail Indicator – hi-visibility Red LED.
- Available in standard, or POE version.
Functional Features: :
- Call Transfer.
- Conference
- Call Splitting.
- Automatic Answer – Intercom.
- Call Pickup.
- Call Forward.
- Redial.
- One Touch Dialing.
- Do Not Disturb.
- Trunk Queuing.
- Barge-In / Monitor.
- Paging (All / Zone).
- Receive Paging.
- and more …..

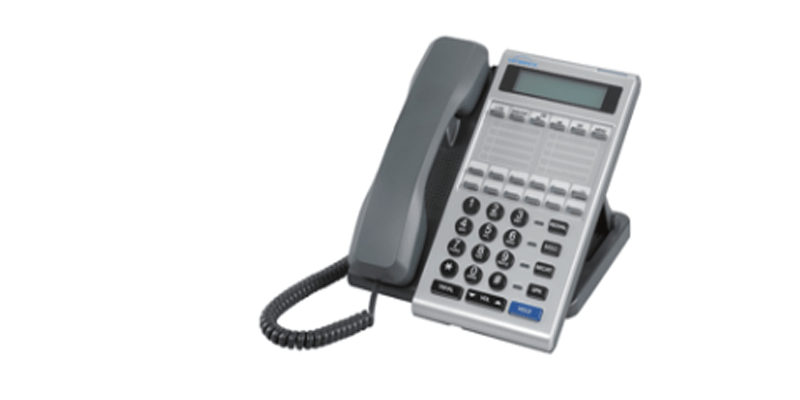

The IP37-62/PF Dual Mode VoIP Phone is flexibly versatile and adapts to modern and increasingly popular VoIP infrastructures.
An optional FXO interface is available which allows the telephone set to be used with traditional PSTN telephone lines as well.
● PoE ( Power over Ethernet )
This feature enables the VoIP Keyphone to operate without the bulky AC power adapter. The power is delivered by a PoE-enabled Hub or Switch over standard Ethernet cable.
● FXO ( Foreign Exchange Office )
The VoIP Keyphone can also make traditional phone calls through its built-in FXO interface, thus integrating both PSTN and VoIP Internet communications.
With this configuration users get the best of both worlds by taking advantage of innovative VoIP technology and the significant cost savings on long distance calls. Also productivity gains emanate by networking the IP37-62/PF to other systems, anywhere in the world.
Of course when needed the “DUAL Mode” feature can be counted on to receive and place calls over traditional telephone lines.
All models incorporate a standard feature set that includes a phone book of up to 140 contacts that can be easily accessed and automatically dialed. The latest technology is offered to enable crisp and brilliant hands free communication and audio while on calls.
“Call logs” means you can quickly review missed calls while out of the office with the ability to simply press a button to return the call, a big productivity gain and time saver.
The new IP37-62/PF Series Dual Mode VoIP Phones offer users the benefits of modern technology advances while embracing the security of traditional telecommunications when required. All at an affordable price point with an exceptional warranty and a global company to stand behind it.
General Specifications :
- Backlit LCD Display: 2 lines * 16 characters
- DSS/BLF button (Dual Color LED): 12 sets
- Ethernet 10/100M Based-Tx Auto Sense Port: Two ports
- Headset Jack
- VoIP Protocol: SIP RFC-3261
- Codec: G.711a/u, G.723, G.729 (Optional), iLBC, GSM
- Audio Quality:
- VAD (Voice Activity Detection)
- CNG (Comfort Noise Generator)
- PLC (Packet Loss Concealment)
- AJB (Adaptive Jitter Buffer)
- Echo Cancellation: G.168
- VLAN Support
- QoS (Quality of Service): RTP/UDP (ToS/Diffserv)
- VPN Client (L2TP)
- Supports 3 SIP Accounts
Standard Features :
- Phone Book: 140 contacts
- Call Hold
- Three-Way Conference
- Call Split (Broker Call)
- Call log (Call out, Missed calls, Valid calls)
- DND (Do Not Disturb)
- Auto Answer
- Group Listening
- Handsfree Conversation
- Headset Mode
- Microphone Muting
- Extra Features (VP series IP-PBX)
- Call Forward (All calls, Busy, No Answer)
- Voice Mail Indicator
- DSS (Direct Station Selection)
- BLF (Busy Lamp Field)
- Call Transfer
- Paging
Useful Features Description :
- ▇ Increase Communication Efficiency With Auto Answer When enabled, incoming calls are automatically switched to the hands free mode, enabling you to freely enter information on a keyboard or do other things while talking.
- ▇ Group Listening -
When talking with someone on the line, you can press the [SPK] key to enable the Group Listening feature and share the conversation with colleagues located in your office.
- ▇ Missed Call Indication -
Missed calls will be indicated by the flashing [Log] button. Press this button to check the missed call and then press the [SPK] key to call that number. It is simple and easy to operate.

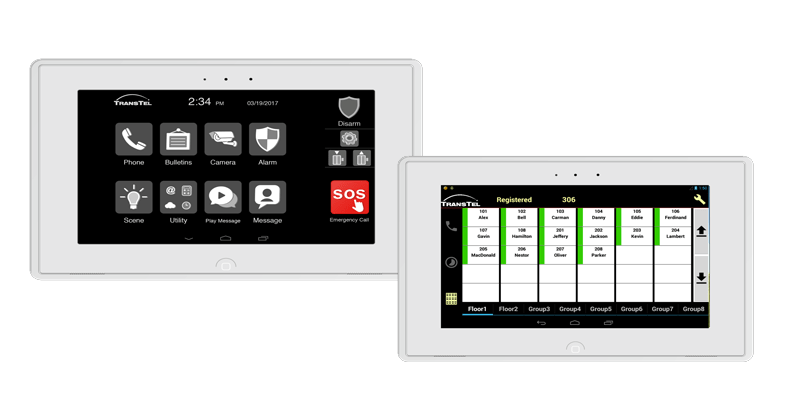

The TransTEL IP39-70 delivers the modern and coming communication services for various video intercom such like the applications for villa, apartment, Hotel,etc. Based on the Android OS, TransTEL IP39-70 helps load the third party applications to a device (if enabled so in the device configuration) to offer additional various Home Automation, Security service and features.
Operating System :
- Android 4.3
Processor :
- Industrial Freescale i.MX6 Cortex A9 Dual CPUs
- Cortex-A9 NEON MPE (Media Processing Engine) Co-processor
- Powerful multimedia accelerator
Storage :
- 4 GB eMMC flash memory
Memory :
- 1 GB DDR3 RAM
Display :
- 7-in. diagonal (153.6 mm H x 90.0 mm V)
- WSVGA LCD with 1024 x 600 pixel effective resolution
- Projected Capacitive Touch supporting multi-touch & gesture
Display :
- 7-in. diagonal (153.6 mm H x 90.0 mm V)
- WSVGA LCD with 1024 x 600 pixel effective resolution
- Projected Capacitive Touch supporting multi-touch & gesture
